Detailinformationen

Material:	Glaswolle	Servicetemperatur:	300 °C, 350 °C, 400 °C
Brandbewertung:	Klasse a	Funktion:	Wärmedämmung
Umweltfreundlich:	Umweltfreundlich	Grad der Brennbarkeit:	Nicht brennbares GradeA
Feuchtigkeitsbeständigkeit:	Nicht absorbierend	Installationsmethode:	Einfach zu schneiden und zu installieren
Schallabsorption:	0,8-1,05	Druckfestigkeit:	A
Garantie:	Mehr als 5 Jahre	Wärmeleitfähigkeit:	0.038W/mK
Anwendungsbereich:	Klimaanlagenisolierung	Form:	Quadrat
Typ:	Kälte- und Hitzebeständig	Dichte:	10–48 kg/m3, 10–100 kg/Kubikmeter, 24–90 kg/m3, 50–200 kg/m3, 10–80 kg/m3 Glaswolleplatte
Farbe:	Gelb, Gelb/Rosa, Blau oder individuell, Silber, weißes Meerblaugrau	Dicke:	25mm-200mm, 50mm 75mm 100mm, 30mm, 25-150mm, 25mm/30mm/50mm/75mm/100mm
Anwendung:	Bauwesen, Fußbodenheizung, Gebäude, HVAC-Isolierung, Wandschalldämmung	Breite:	600–1200 mm, 1,2 m, 1 m/1,2 m/1,22 m, 0,6 m, 600 mm
Wärmeleitfähigkeit:	0,034–0,06 W/mK, 0,032–0,06 W/mK, 0,040 W/mK, ≤ 0,039
Hervorheben:	HVAC duct board glass wool , laminated glass wool duct board , air conditioning duct board insulation

Produkt-Beschreibung

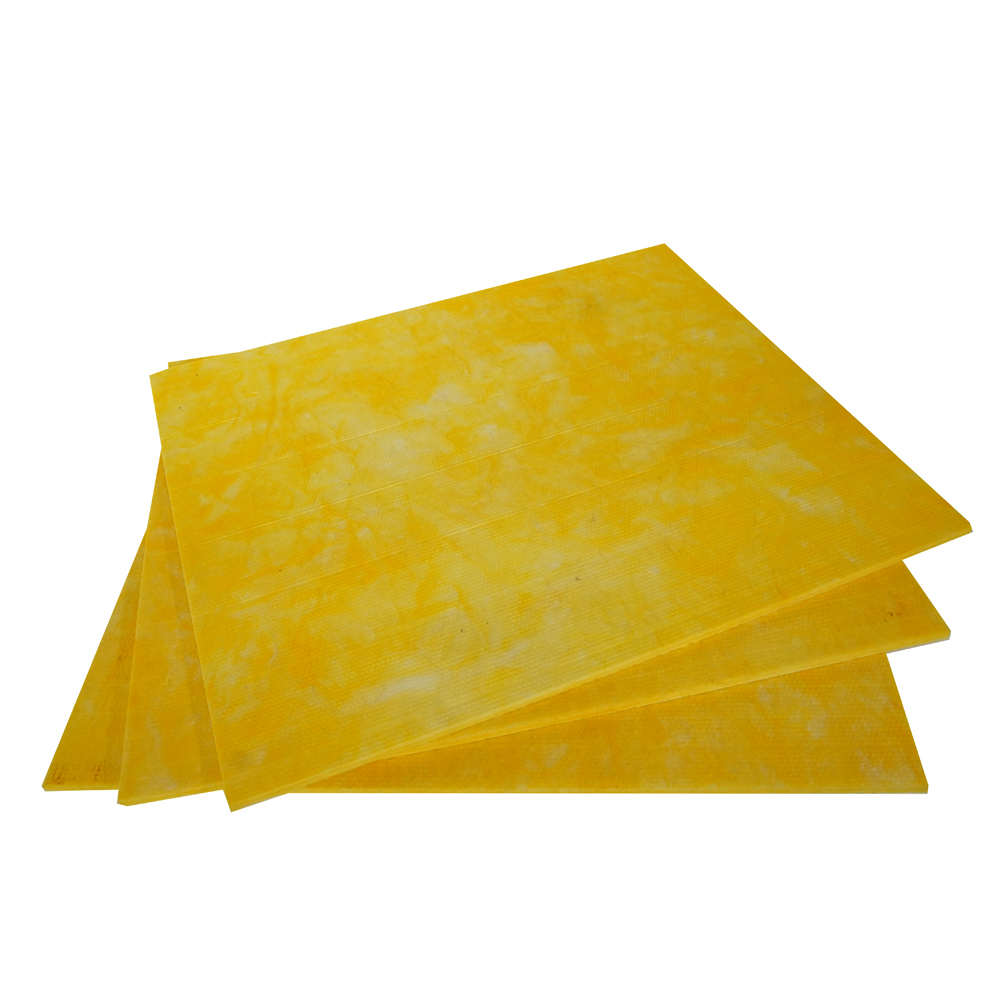

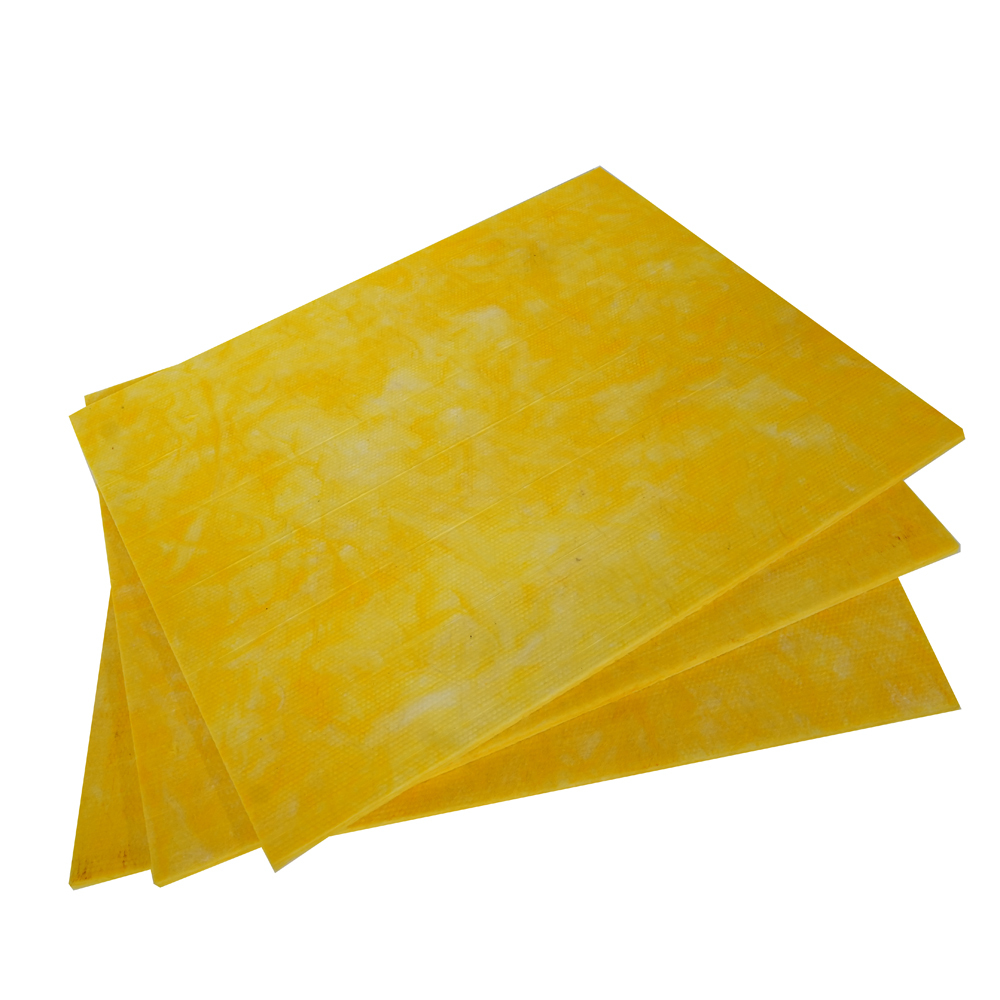

Glass Wool Board

Product introduction of the glass wool board

Engineered specifically for demanding HVAC applications, our FANRYN Glass Wool Duct Board is the ideal choice for fabricating and insulating air conditioning and ventilation ducts. With a higher density range (up to 96 kg/m³) and the option for laminated facings, it provides superior rigidity, acoustic lining, and thermal efficiency for commercial and industrial systems.

Product parameter of the glass wool board

Item	Unit	Index	Standard
Bulk density	kg/m³	24-96	GB/T 5480.3-1985
Average fiber dia.	µm	5.5	GB/T 5480.4-1985
Water content	%	≤1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m.k	0.031-0.042	GB/T 10294-1988
Hydrophobicity	%	≥98.2	GB/T 10299-1988
Moisture rate	%	≤5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤0.3

Product size of the glass wool board

Density(kg/m3)	Thickness(m)	Length (m)	Width (m)	Pcs/packing
24-96	0.025-0.1	0.6-1.25	0.6	5-18
24-96	0.025-0.1	0.6-2.4	1.1-1.25	5-18

Product feature and application of the glass wool board

Duct Board Specific: Designed for fabricating rectangular and oval ductwork, offering both thermal insulation and noise reduction from the inside out.
High-Density Performance: Provides structural integrity and resistance to airflow erosion within ducts, ensuring long-term performance.
Factory-Laminated Facings: Available with Foil-Scrim-Kraft (FSK) for a built-in vapor barrier, reducing on-site labor time and costs.
Non-Combustible Safety: Grade A fire rating ensures compliance with building safety codes for mechanical systems.
Easy Fabrication: Can be easily scored and cut to create precise duct sections and fittings.

HVAC Air Handling Unit Insulation
Fabrication of Double-Wall Ducts
Acoustic Lining for Sheet Metal Ducts
Plenums and Mechanical Room Insulation

Production packing of the glass wool board

The normal packing is plastic bag

OEM is acceptable

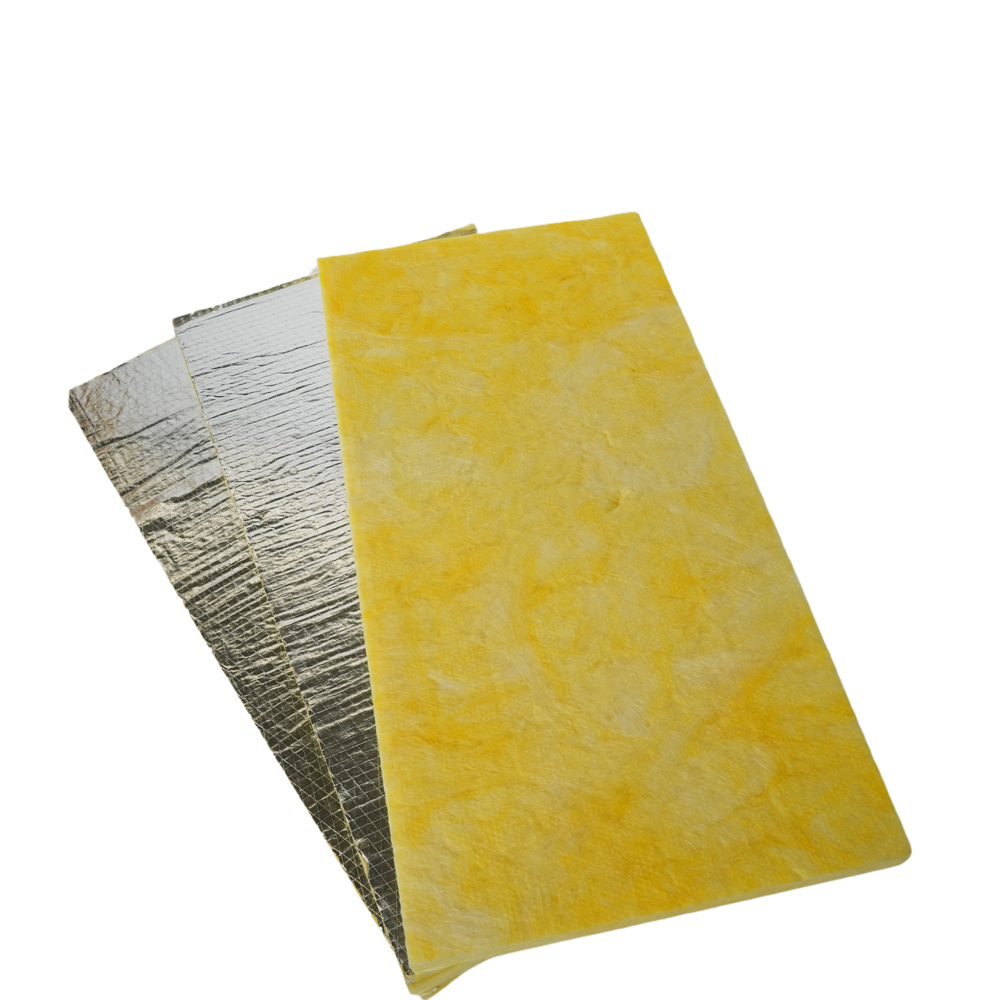

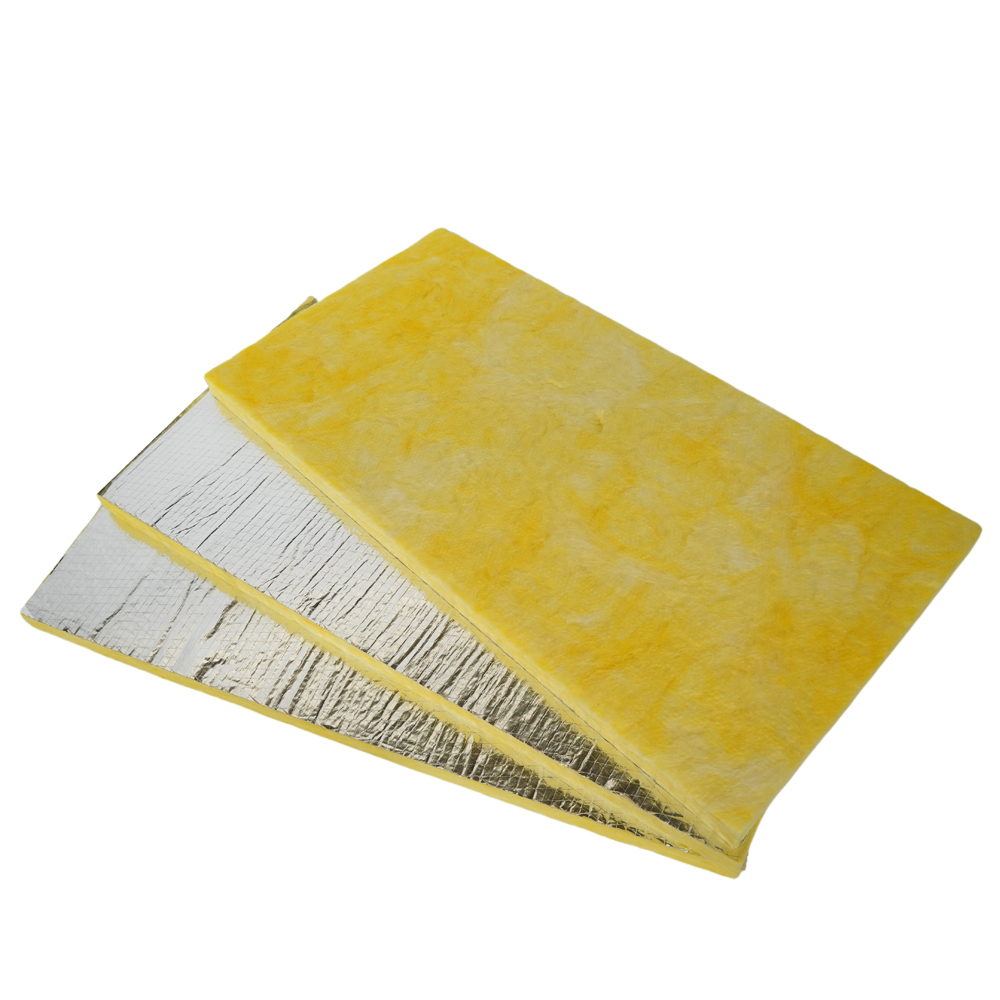

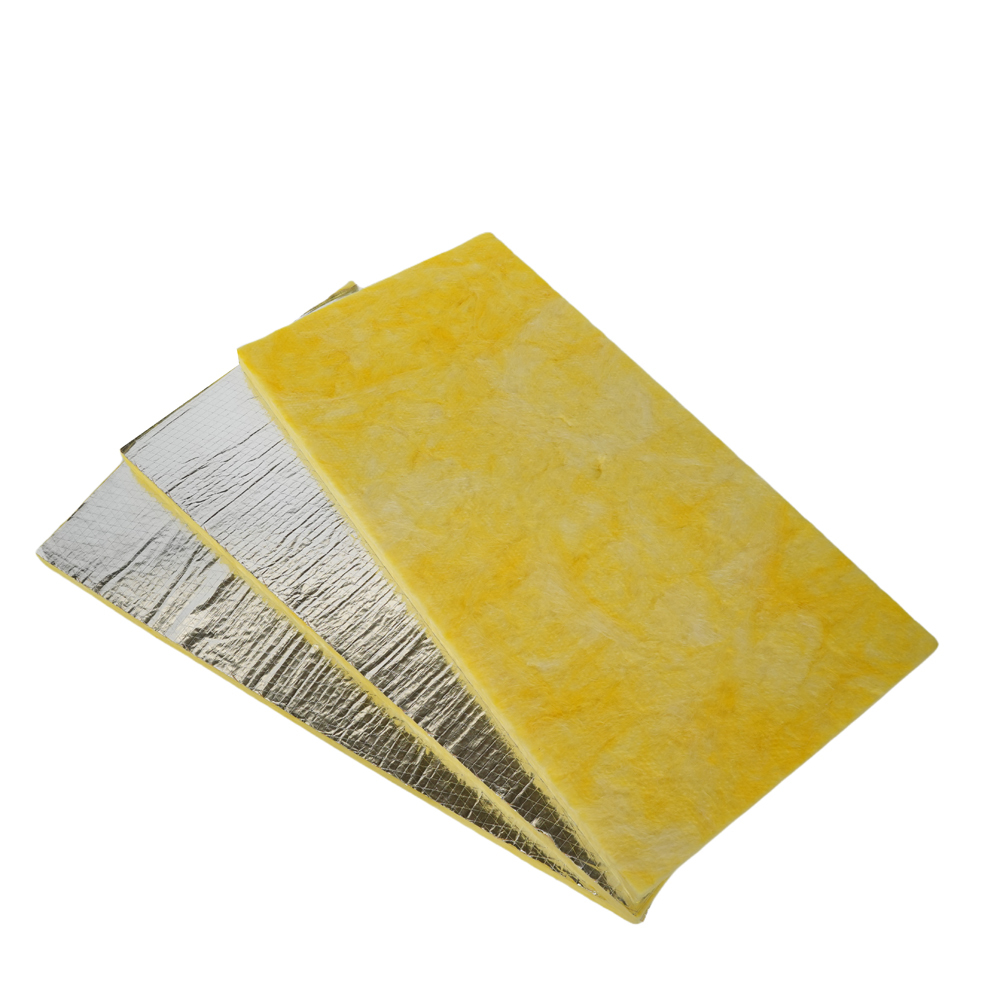

Production Facing of the glass wool board

Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on glass wool board?

A4: Special size can be made according customer’s requirement.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Größe und Tag:

Herkunftsort:	China
Markenname:	FANRYN

Verpackung Informationen:	Plastiktüte
Lieferzeit:	10 Arbeitstage
Zahlungsbedingungen:	T/T
