Detailinformationen

Dichte:	40-200kg/m3	Typ:	Andere Wärmedämmstoffe, Decken, Steinwolle, mineralische Steinwolle-Schallfasermatten-Isolierdecke a
Farbe:	GELB	Dicke:	30-100mm
Anwendung:	Bauwesen, 25–200 mm, Dampfrohrisolierung, Gebäudeisolierung aus Metall, Material für die Wärmedämmun	Material:	Glasfaser, Basalt, Steinwolle, Gabbro, Glasfaser
Grad der Brennbarkeit:	Nicht kombinierbarer Grad A1, nicht brennbarer Grad A.	Besonderheit:	Nicht brennbar, wasserdicht, Wärmeisolierung, feuchter Beweis, Isolier-/Feuerwache/Schallabsorption
Wärmeleitfähigkeit:	0,032 W/m², 0,038 W/m², 0,032-0,06 W/m²	Faserdurchmesser:	4–6 μm, 3 μm–5 μm, 4–7 μm
Paket:	PP- und PE-Beutel, 1.PP- und PE-Beutel 2. Kundenspezifisch, Außenverpackung mit einem gewebten Beute	Funktion:	Wassersicher, thermische Erhaltung
Größe:	1200*600 mm	Wärmeleitfähigkeit:	0,038–0,042 W/mk, 0,037–0,042 W/mk
Hydrophobizität:	≥ 98%
Hervorheben:	custom rock wool insulation , precision-engineered mineral wool , thermal insulation with warranty

Produkt-Beschreibung

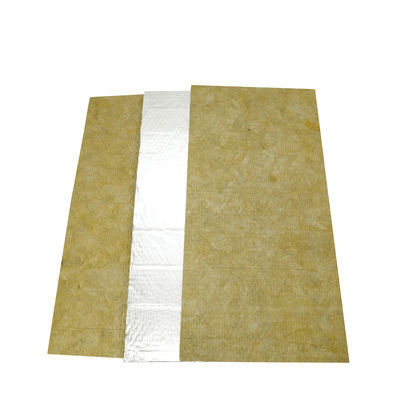

Rock Wool Board

Product introduction of the Rock Wool Board

Your project is unique. Your insulation should be too. FANRYN specializes in manufacturing rock wool boards that meet exact project requirements, from standard builds to highly specialized applications.

Product parameter of the Rock Wool Board

Properties	Board	Standards
Density Tolerance	±10%	GB/T 19686-2005
Fire Performance	Non-Combustible	GB/T 5464-1999
	Reaction to fire Class A1	GB/T 8624-2006
Thermal Conductivity (W/mK, at70±5℃)	≤0.044	GB/T 10295
Fiber Diameter	7(+/-1)um	GB/T 5480. 4
Shot Content (shot size＞0.25mm)	≤12%
Moisture Content	≤0.5%
Organic Matter Content	≤4%
Melting Point	＞1000℃

Product size of the Rock Wool Board

Product	Board
Density (kg/m3)	40-200
Size :L x W (mm)	600X1200
Thickness (mm)	30-100

Product feature and application of the Rock Wool Board

Rigorous Quality Control: Every batch is monitored throughout production—from raw material selection to fiberizing, curing, and cutting. We ensure density tolerance within ±10% and low shot content (≤12%) for consistent performance.
Customization at Your Fingertips:
- Density: We produce boards from 40 kg/m³ to 200 kg/m³ to suit your structural and performance needs.
- Dimensions & Thickness: While 1200x600mm is standard, we can customize length, width, and thickness (30-100mm standard, other thicknesses on request) to minimize waste and speed up installation.
Specialty Facings Available: Enhance functionality with integrated facings.
- Black Scrim Reinforcement: For added tensile strength.
- Aluminum Foil: Acts as a vapor barrier and reflective insulation.
- Fiberglass Cloth: For high-temperature applications and durability.

Precision-Engineered Rock Wool: Built to Your Specifications 2

Production Facing of rock wool board

Wire Mesh

Aluminum foil facing

Fiberglas cloth

Production packing of the Rock Wool Board

plastic bag
PE shrinking bag

Precision-Engineered Rock Wool: Built to Your Specifications 4

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: What is your lead time for one 40HCcontainer order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on rock wool board?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Größe und Tag:

Herkunftsort:	China
Markenname:	FANRYN

Verpackung Informationen:	Plastiktüte
Lieferzeit:	10 Arbeitstage
Zahlungsbedingungen:	T/T
