Industrial Hot Steam Pipeline Insulation Fireproof Glass Wool Pipe / Tube Insulation

Grundlegende Informationen
Place of Origin: Beijing, China
Markenname: FANRYN
Model Number: N yf
Minimum Order Quantity: 300.0 Pieces
Supply Ability: 200 Cubic Meter/Cubic Meters per Month
Detailinformationen
Gewährleistung: 1 Jahr Dienstleistungen nach dem Verkauf: Online-technische Unterstützung
Projektlösungsfähigkeit: Grafikdesign Anwendung: Wohnung, Pipe.
Design-Stil: Industrie Herkunftsort: Peking, China
Markenname: FANRYN Modellnummer: N yf
Material: Basalt Produktbezeichnung: Wasserdichte Wärmedämmstoffe
Farbe: Gelb Name: Schalldichte Glaswolle
Stärke: 25 bis 100 mm Dichte: 80 kg/m3
Länge: 1000mm 1200mm Paket: Ausgestopft
Funktion: Thermische Bewahrung
Hervorheben:

Industrial Insulation Glass Wool Pipe

,

Hot Steam Insulation Glass Wool Pipe

,

Fireproof Pipeline Insulation Glass Wool Pipe


Produkt-Beschreibung



Hot steam pipeline insulation fireproof glass wool pipe/tube insulation

Recommend Thickness List(mm)



Pipeline System Type

The Thickness of glasswood pipe shell applied in different pipeline(mm)

Liquid Temperature Range℃

Diameter of Branches Under 50mm

Under 25mm

32-50

64-100

125-150

Above 200mm

Air System Steaming and Water System High Temperature/High Pressure System

152-238

40

64

64

75

89

89

Medium Temperature/Medium Pressure System

122-151

40

50

64

64

75

75

low Temperature/low Pressure System

94-121

25

40

40

50

50

50

low Temperature System

49-93

13

25

25

40

40

40

Steaming Condensator of Watering System

Any Temperature

25

25

40

50

50

50



Facing For glass wool blanket :

  • Foil-Scrim-Kraft Facing
  • Alum Glass Cloth Facing

Specification:

Density(kg/m3)

Thickness(mm)

Length (mm)

Diameter (mm)

48-80

25-90

1000,1200

18-529





Hot steam pipeline insulation fireproof glass wool pipe/tube insulation

Hot steam pipeline insulation fireproof glass wool pipe/tube insulationHot steam pipeline insulation fireproof glass wool pipe/tube insulationHot steam pipeline insulation fireproof glass wool pipe/tube insulationHot steam pipeline insulation fireproof glass wool pipe/tube insulation

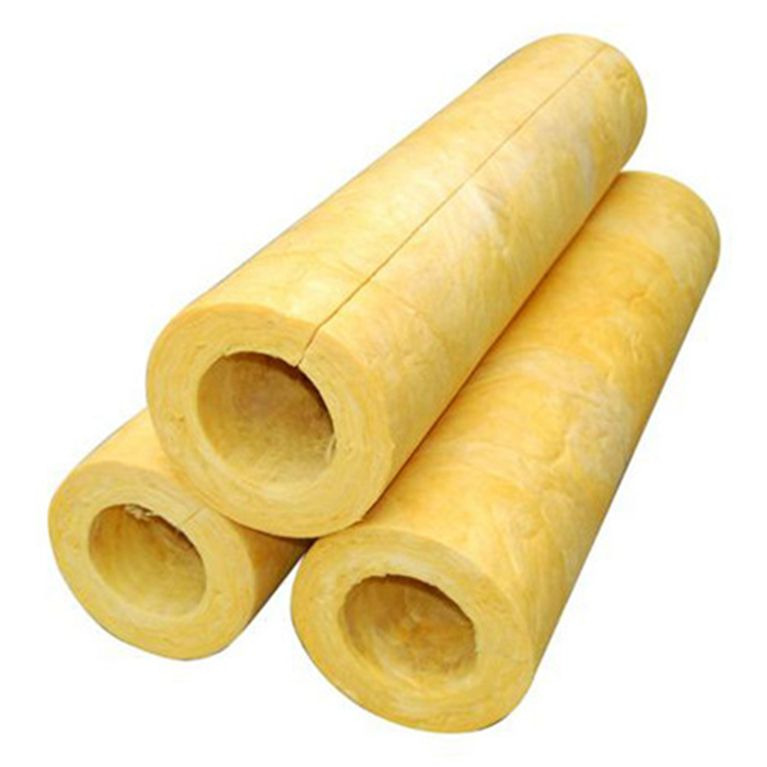

Product introduction of the Glass Wool Pipe

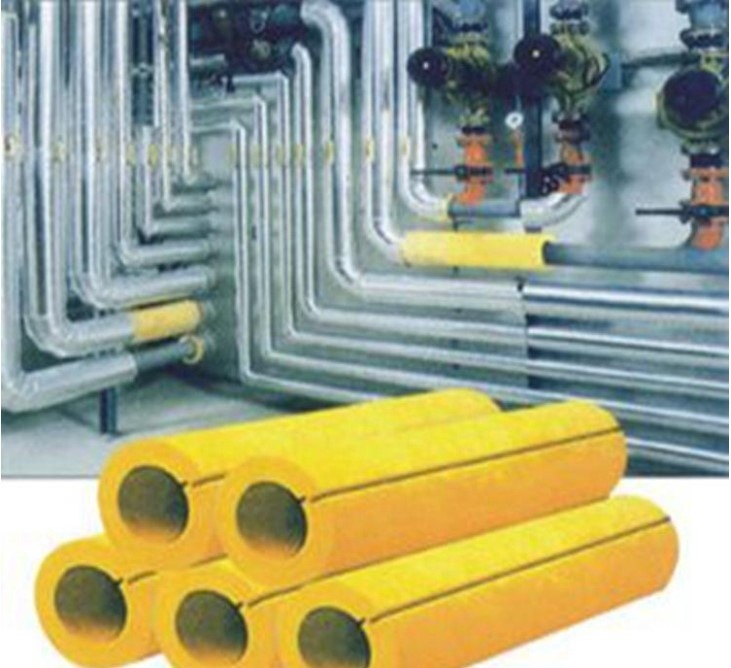

Glass wool Pipe Section is a kind of economical insulating material which is light and easy to install. This material has excellent performance of heat and sound insulation under both extremely high and low temperature conditions(.-85 degree to 454 degree) Therefore, glass wool section pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.

Industrial Hot Steam Pipeline Insulation Fireproof Glass Wool Pipe / Tube Insulation 6

If you are interested in our products,please { click here }to see all the products

Hot steam pipeline insulation fireproof glass wool pipe/tube insulationHot steam pipeline insulation fireproof glass wool pipe/tube insulationHot steam pipeline insulation fireproof glass wool pipe/tube insulation

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).


Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.



Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.



Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.



If you have any other questions,please click here to "send an inquiry".
