FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts

FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts
FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts
Grundlegende Informationen
Herkunftsort: China
Markenname: FANRYN
Verpackung Informationen: Plastiktüte
Lieferzeit: 15 Arbeitstage
Zahlungsbedingungen: T/t
Bestpreis Kontakt
Detailinformationen
Höchstgeschwindigkeit der Gelenke: J1-J4 180°/s J5-J6 200°/s Teilenummer: H27LK52
Modell Nr: QM-510 Haltungswiederholbarkeit: ± 0,06 mm
Zahlungszeit: T/T, Western Union, Paypal Technik: Hand- geschnitzt und Polier
Durchsatz: 32 Gbps verwenden: Sonstige Haushaltsprodukte
Masse: 13 kg Produkt: Robotik-Teile
Farbe: Gelb, rot Designstil: Modern
Ursprungsland: China Länge: 6.035 Zoll
Farben: Akzeptieren Sie angepasste Farben
Hervorheben:

rubber plastic insulation pipe

,

HVAC duct thermal insulation

,

high-performance insulation pipe

Produkt-Beschreibung

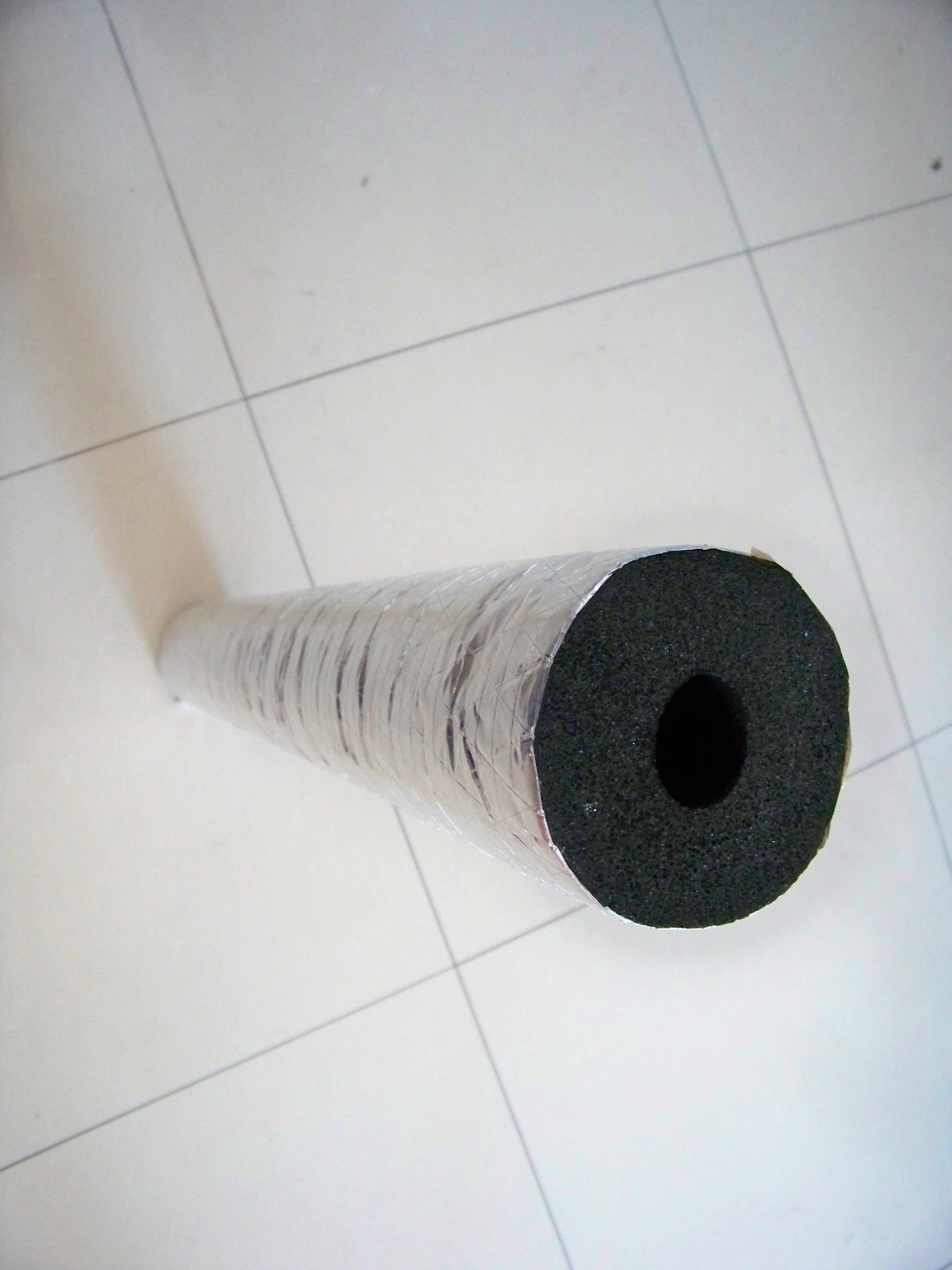

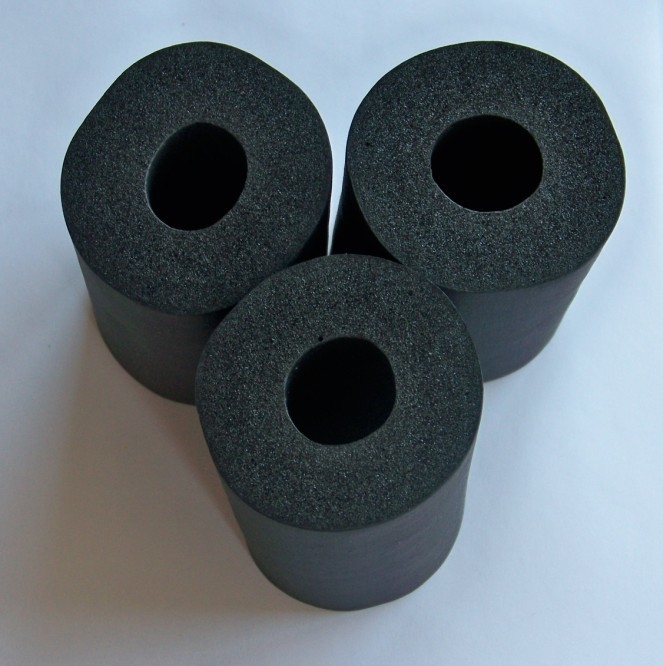

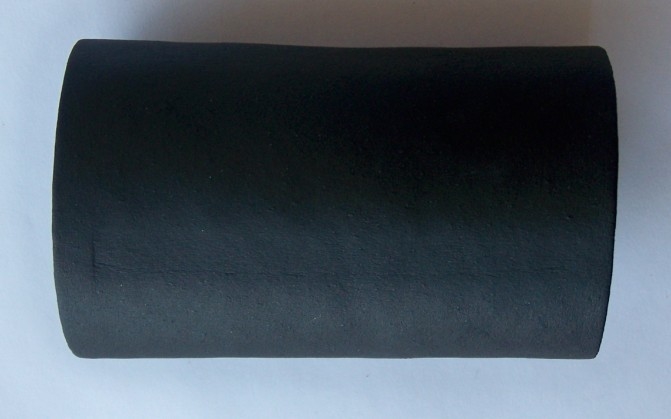

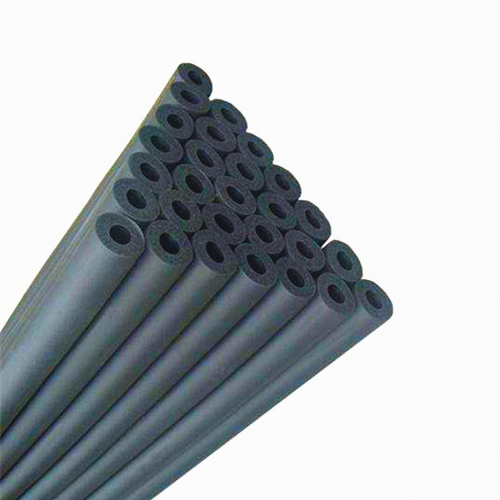

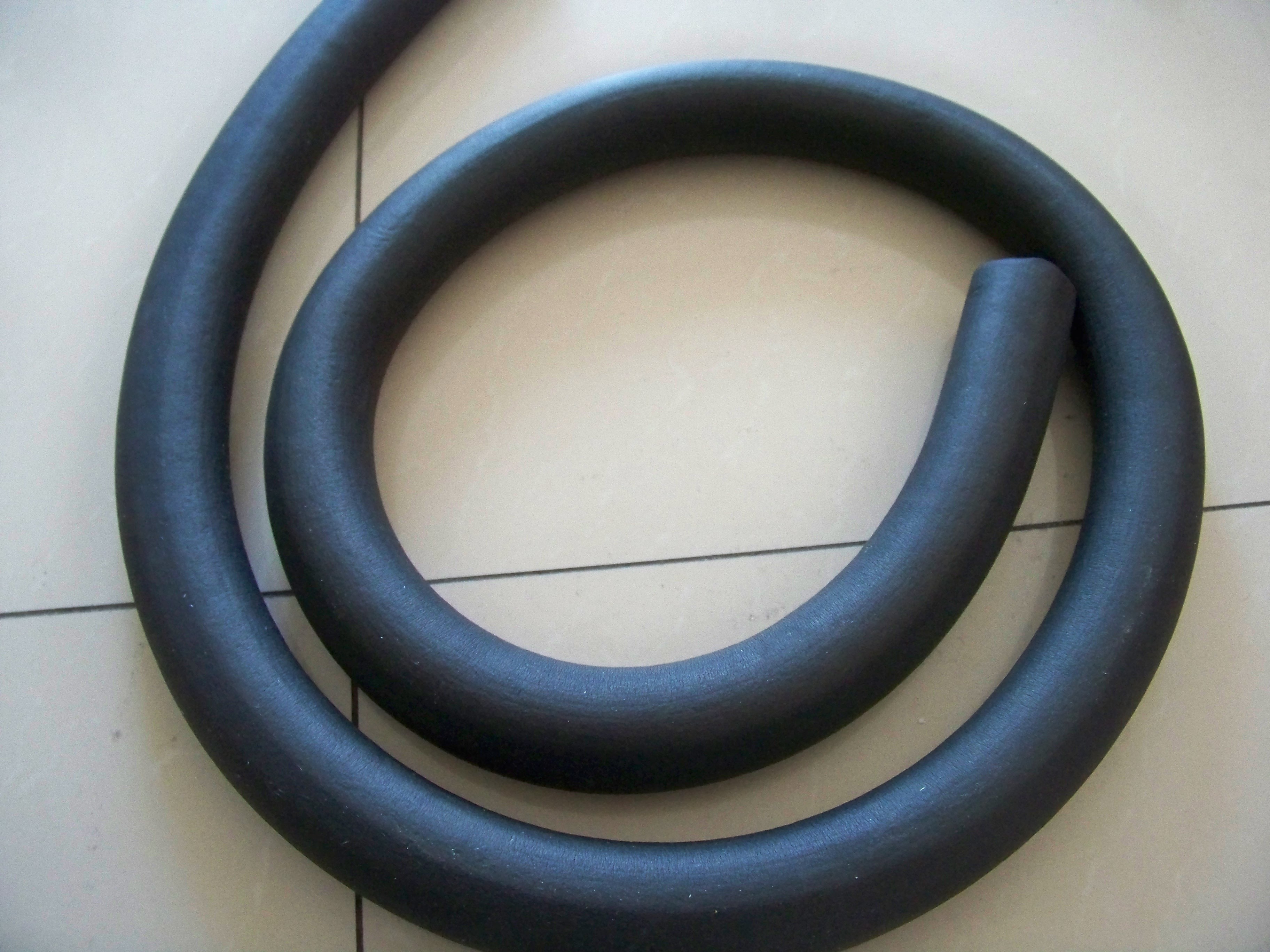

Rubber Insulation Pipe

Product introduction of the rubber insulation pipe

FANRYN CLASS B0 Rubber Plastic Insulation Pipe offers exceptional thermal insulation and energy-saving properties. Its charcoal-grey appearance distinguishes it from other grades, while its closed-cell structure provides excellent moisture resistance and longevity. This product is specially formulated to meet European standards and is widely used in HVAC duct systems. It maintains consistent performance across a wide temperature range (-50°C to 110°C), making it suitable for both heating and cooling applications in buildings worldwide.

Production details of the rubber insulation pipe

FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts 0Product parameter of the Class B0 rubber insulation pipe

Item Unit Specification Standard
Density Kg/m3 40~90 GB/T 6343
Temperature ℃ -50~110 GB/T 17794
Flammability —— B
B1		 GB/T 8624-2006
Glass0 BS476Part 7∝Part6
Oxygen index % ≥40 GB/T 2406
SDR
≤65 GB 8627-1999
Conductivity factor
Average temperature
-20℃
0℃
40℃		 W/(m·k)

≤0.031
≤0.034
≤0.036		 GB/T 10294
Water vapor permeability Factor —— ≥1.0×104 GB/T 17146-1997
coefficient g/(m.s.pa) ≤1.96×10-11
Water absorption ratio in vacuum % ≤10 GB/T 17794-2008
Dimension stability
105±3℃,7d		 % ≤10 GB/T 8811
Crack resistance N/cm ≥2.5 GB/T 10808
Compression resilience ratio % ≥70 GB/T 6669
Anti-ozone —— Not cracking GB/T 7762
Aging resistance —— Slightly crumpling,no cracks,no pin holes,not deforming GB/T 16259

Product size of the rubber insulation pipe

Tube inner diameter (mm) 9mm thick
(1.8m/piece)		 15mm thick
(2m/piece)		 20mm thick
(2m/piece)		 25mm thick
(2m/piece)
Size
(mm*mm)		 Piece Piece/box Size
(mm*mm)		 Piece Size
(mm*mm)		 Piece Size
(mm*mm)		 Piece
6 6*9 180 180





10 10*9 140 140 10*15 80 10*20 70

13 13*9 120 100 13*15 80 13*20 50

16 16*9 100 95 16*15 60 16*20 50

19 19*9 100 80 19*15 60 19*20 40

22 22*9 100 70 22*15 60 22*20 40 22*25 30
25 25*9 80 55 25*15 60 25*20 30 25*25 25
28 28*9 60 50 28*15 50 28*20 30 28*25 25
32 32*9 60 45





34


34*15 40 34*20 30 34*25 25
35 35*9 60 40






38*9 50 30





42 42*9 50 30





43 43*9 50 30 43*15 30 43*20 25 43*25 20
48 48*9 50 28 48*15 30 48*20 25 48*25 20
54 54*9 50 25





60 60*9 50 20 60*15 30 60*20 20 60*25 15
76


76*15 25 76*20 15 76*25 15
89




89*20 15 89*25 15
108




108*20 15 108*25 10

Product feature of the rubber insulation pipe

  • Low thermal conductivity factor
  • Good fireproof property
  • Vibration resistance
  • Closed pore foaming good moisture resistance
  • Good pliability
  • Beautiful appearance and easy to install
  • Good energy saving property

Product application of the rubber insulation pipe

  1. Chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment
  2. Heat preservation and insulation of central air-conditioning system
  3. Every kind of cold/hot medium piping

Production packing of the rubber insulation pipe

Packing

  1. PE plastic bag
  2. PE plastic bag +carton

Note: OEM is acceptable

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.

Q4: What is your advantage on rubber insulation pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
